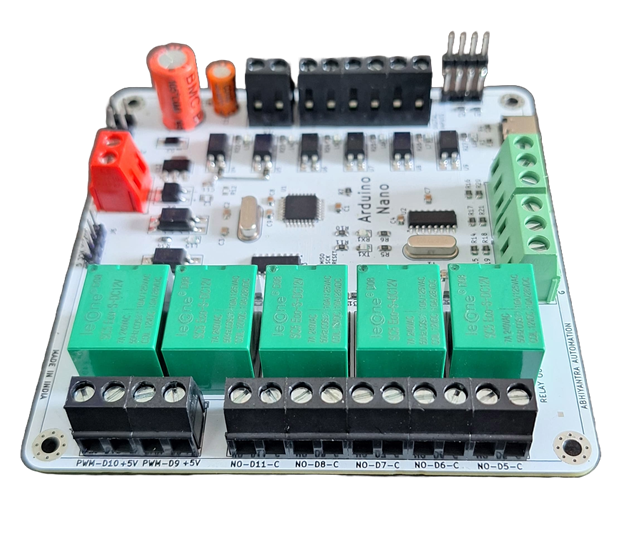

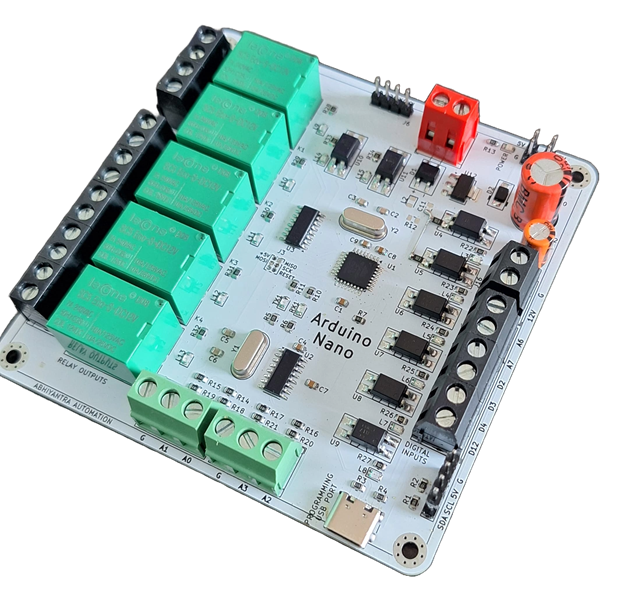

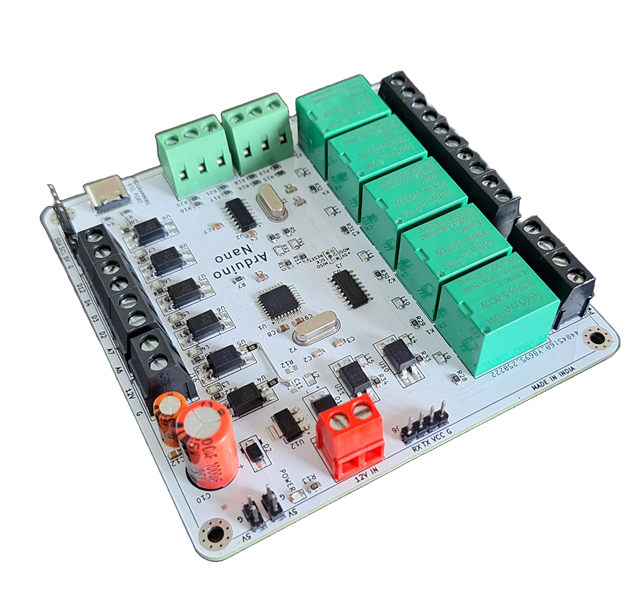

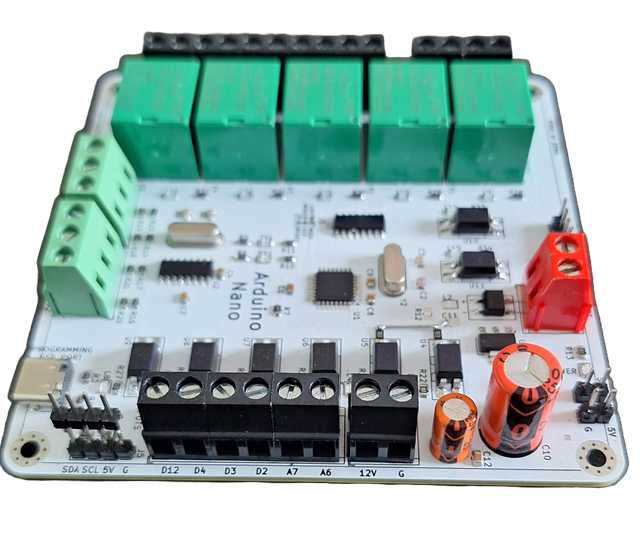

Arduino Nano PLC V1

Arduino Nano based PLC, Without OLED Display

• 6 optically isolated digital inputs active high pins,
• 5 relay outputs
• 2 PWM outputs (5V)
• 4 analog inputs 0-10V
• LEDs are used to indicate the status of input and output
• UART Port
• I2C Port
• Onboard C-Type usb port for programming
• Programming using Arduino IDE.
• Power Supply: 12VDC SMPS Supply 2A Min.
• Size: 99mm * 99mm

What will be in the Box:

Arduino Nano board - 1no.

Note: I2C display is not included in this box, it is for represenation only.

Check the video
