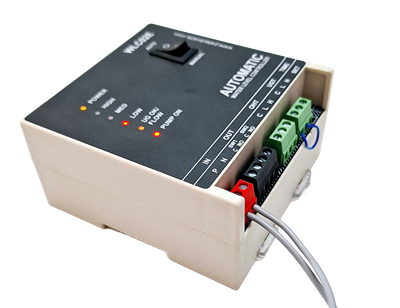

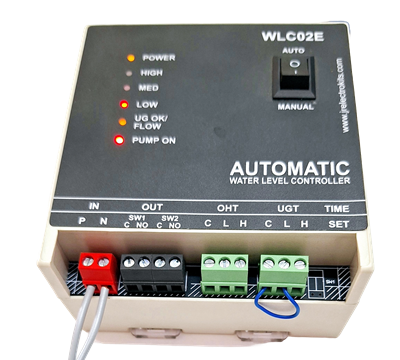

Electrolysis Free Automatic Water Level Controller, 30A Dual Relay, WLC02E

0 Review(s)

  1. Fully Automatic for 1.5HP pump
  2. Electrolysis free model, no more corrosion on sensors
  3. Over Head and underground tank protection
  4. Dual 30Amp Relay, First for Power and second for Start push button
  5. Relay1 (SW1) Continue On, Relay2 (SW2) On for 2seconds for start push
  6. Works on 230Vac
  7. Input: 230VAC and Output: 30A Relay contact
  8. Din Rail Mount
  9. Auto/Manaul Function
  10. Low level fault detection system
  11. Auto fault reset after 60Sec. (upto 3 times only)
  12. Including 6nos metal sensors

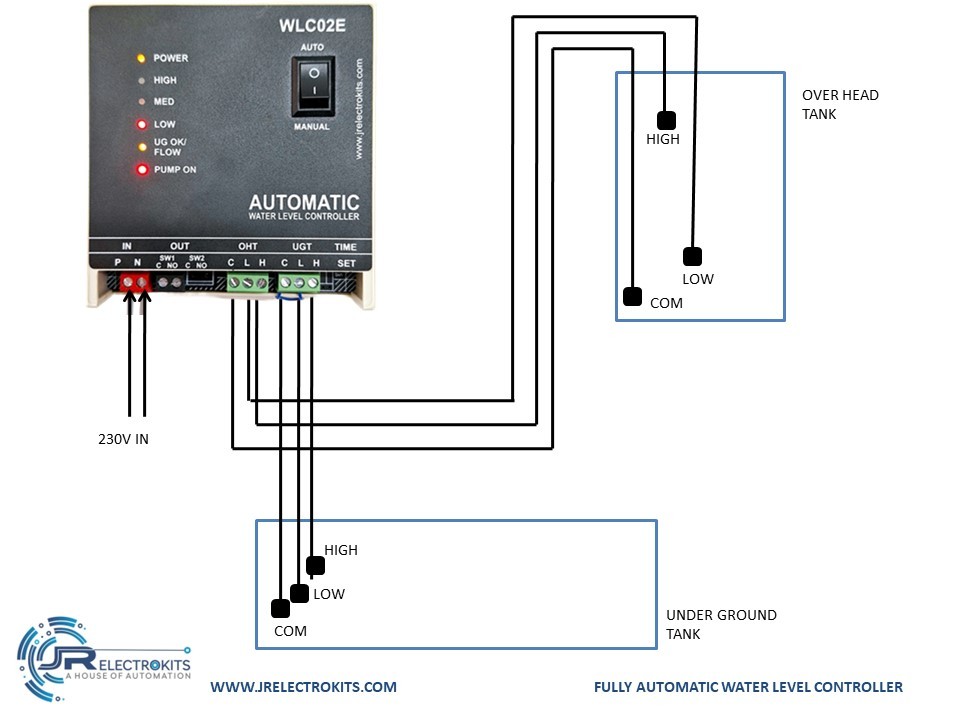

Download Connection Diagram

₹1250.00
Availability: In Stock

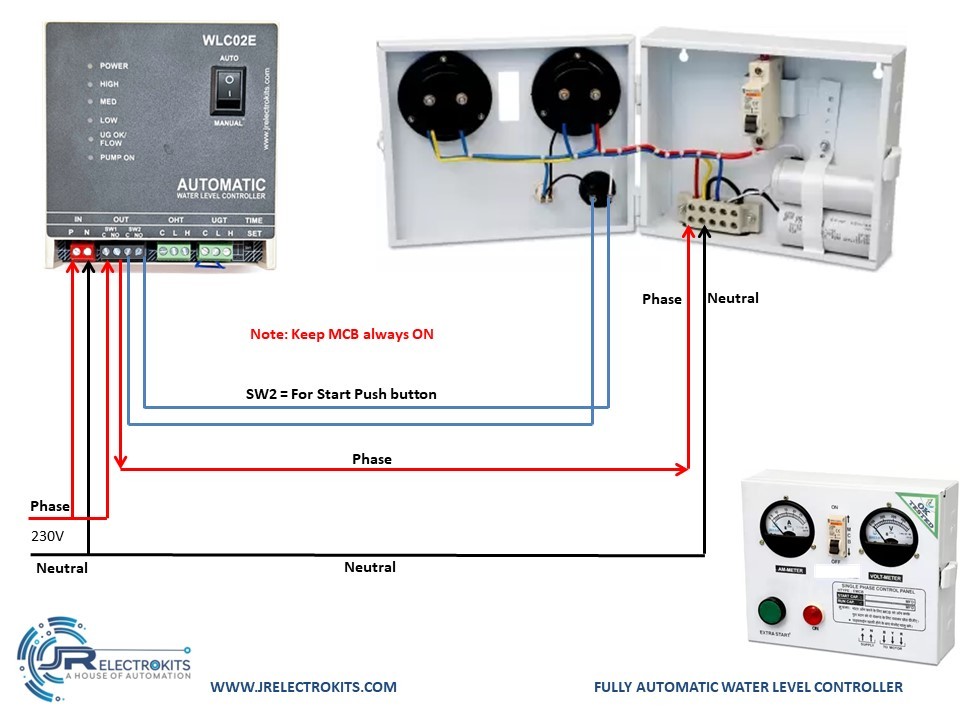

Water Level Controller For MCB Type Starter Panel Pump

PIC Microcontroller based

•There are two relay first for Power cut off and second for START push button, both are 30amps and suitable for upto 1.5 HP pumps

•If Under ground tank level is ok (UG OK Light ON) and overhead tank level goes to low level then 1st  power relay will ON after delay of 1 second, 2nd  relay will ON for 2 second to push start push button.

•If your pump is normal ON/OFF switch Type pump then leave 2nd relay connection

•At high level pump will OFF automatically

•To start pump in manual mode, put switch in manual mode after delay of 3 sec pump will start.



Package included:1x Water Level Controller and 6 x Metal Sensors
