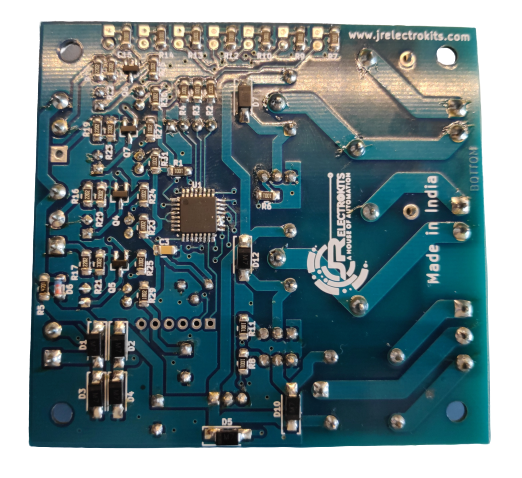

WATER LEVEL CONTROLLER FOR SUBMERSIBLE PUMP

1. THIS CONTROLLER IS DESIGNED FOR STARTER PANEL TYPE PUMP, WHERE TWO START PUSH CONTACT AND SINGLE STOP CONNECTION IS REQUIERED

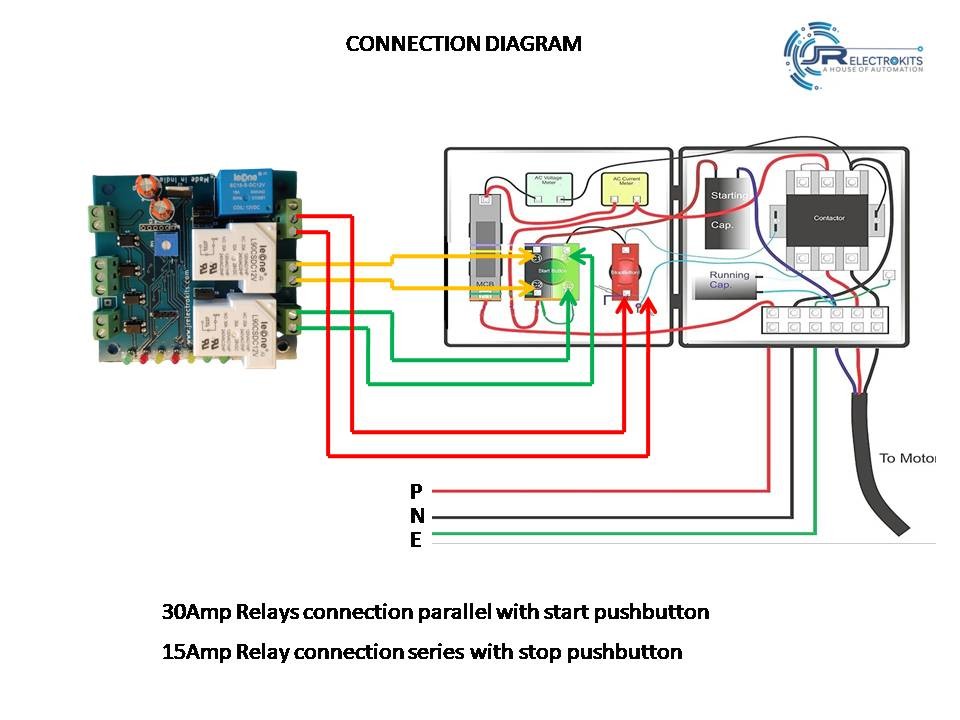

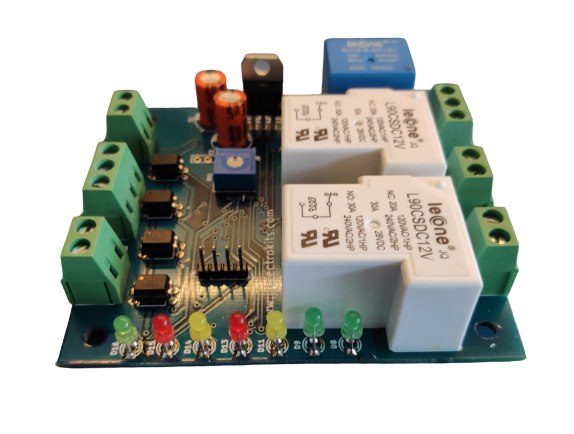

2. IT HAS TWO 30AMP RELAY FOR START PUSH BUTTON (PARALLEL CONNECTION) AND ONE 15AMP STOP
   RELAY (SERIES WITH STOP PUSH BUTTON)
3. AT LOW LEVEL FIRST STOP RELAY-3 WILL START TO MAKE NC CONNECTION AND THAT RELAY-1 & 2 WILL
   START TO PUSH THE START BUTTON.
4. AT HIGH LEVEL STOP RELAY WILL DEACTIVE AND STOP THE PUMP

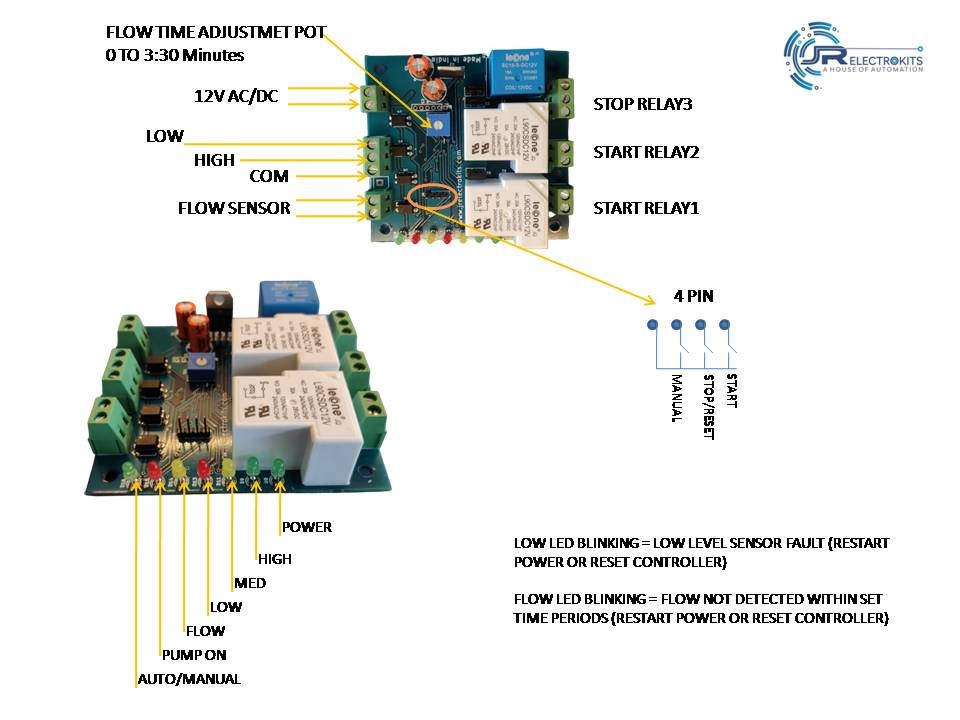

5. VARIABLE POT IS GIVEN TO SET FLOW DETECTION TIME DELAY (0 TO 3:30 MIN.), IF FLOW NOT DETECT
   WITHIN THIS TIME PERIODS, IT WILL STOP THE PUMP AND FLOW LED WILL BLINK.
6. IF LOW LEVEL SENSOR IS OPEN AND HIGH LEVEL DETECT, IT WILL GIVE LEVEL SENSOR FAULT ALARM AND
   LOW LEVEL LED WILL BLINK.
7. AUTO AND MANUAL START/STOP, RESET FUNCTION.
8. IN ANY FAULT CONDITION RESTART POWER SUPPLY OR PRESS RESET PIN
